Dear customer, here is our new arrival MTL5532 1 channel pulse isolator product for your reference. We have more than 30 pieces of MTL5532 barriers in stock for sale.

MTL5532 barrier product stock products picture.

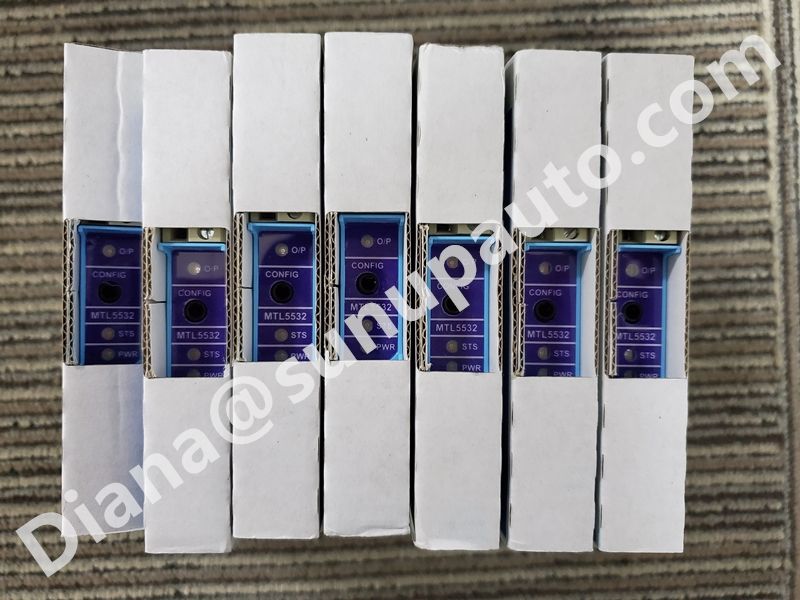

Stock MTL5532 barrier product picture as below.

MTL5500 range MTL5532 barrier product introduction:

MTL4532 – MTL5532 PULSE ISOLATOR pulse & 4/20mA current outputs

The MTLx532 isolates pulses from a switch, proximity detector, current pulse transmitter or voltage pulse transmitter located in a hazardous area. It is ideal for applications involving high pulse rates and fast response times, by repeating the pulses into the safe area. An analogue output proportional to frequency is also provided, together with a relay output, which may be configured to act as an alarm. Configuration is carried out with a personal computer.

SPECIFICATION

See also common specification

Number of channels

One, fully floating

Sensor type

Switch or proximity detector (NAMUR/BS EN 60947–5–6:2001)

2– or 3–wire voltage or pulse transmitter

Location of switch

Zone 0, IIC, T6 hazardous area

Div. 1, Group A, hazardous location

Location of proximity detector or transmitter

Zone 0, IIC, T4–T6 if suitably certified

Div.1, Group A, hazardous location

Input

Switch input:

Output ON if switch is closed

Proximity detector input:

Excitation: 7.0 to 9.0V dc from 1kΩ nominal

Output ON if input > 2.1mA* (< 2kΩ)

Output OFF if input < 1.2mA* (> 10kΩ)

Switching hysteresis: 0.2mA (650Ω) nominal

*NAMUR and BS EN 60947–5–6:2001standards

Current pulse input:

Transmitter supply: 16.5V dc at 20mA

Short circuit current: 24mA

Output: Iin > 9.0mA = ON, Iin < 7.0mA = OFF

Switching hysteresis: 0.5mA

Voltage pulse input

Input impedance: > 10kΩ

Switching point voltage (Vsp): 3, 6, or 12V nominal

(User selectable by switches on the side of the module)

Output: Vin > Vsp = ON, Vin < Vsp = OFF

Switching hysteresis: 100mV + (0.1 x Vsp) typical

Safe-area pulse output

Maximum delay: 10µs

Maximum off–state voltage: 35V

Maximum off–state leakage current: 10µA

Maximum on–state resistance: 25Ω

Maximum on–state current: 50mA

Output OFF if supply fails

Note: LFD signal is Zener-diode protected against inductive loads

Safe-area current output

Input capture delay: 2 signal periods (5ms min.)

Signal range: 4 to 20mA

Under/over range: 0 to 22mA

Load resistance: 0 to 450Ω @20mA

Output resistance: >1MΩ

Some hot sale models for MTL5500 range isolated barriers.

MTL5500 Series Barriers

Part Number

MTL5501-SR, MTL5510, MTL5510B, MTL5511, MTL5513, MTL5514, MTL5514D, MTL5516C, MTL5517, MTL5521, MTL5522, MTL5523, MTL5523V, MTL5523VL, MTL5524, MTL5525, MTL5526, MTL5531, MTL5532, MTL5533, MTL5541, MTL5541A, MTL5541AS, MTL5541S, MTL5544, MTL5544A, MTL5544AS, MTL5544D, MTL5544S, MTL5546, MTL5546Y, MTL5549, MTL5549Y, MTL5561, MTL5575, MTL5576-RTD, MTL5576-THC, MTL5581, MTL5582

MTL5500 series

Part NumberDescription

Digital Input 　

MTL5501-SR 1ch DI failsafe solid-state output + LFD alarm

MTL55104ch DI solid-state ouput

MTL5510B4ch DI multifunction solid-state output

MTL55111ch DI relay output

MTL5513 2ch DI solid-state output

MTL5514 1ch DI relay output + LFD alarm

MTL5514D 1ch switch/prox input, dual output relay

MTL5516C2ch DI with changeover relay output

MTL55172ch DI relay output + LFD alarm

Digital Output　

MTL5521Loop powered solenoid driver, IIC

MTL5522 Loop powered solenoid driver, IIB

MTL5523Solenoid driver with LFD

MTL5523V - VL Solenoid/Alarm driver with voltage control

MTL5524 Switch operated solenoid driver

MTL5525Loop powered solenoid driver low power

MTL55262ch switch operated relay

Analogue Input　

MTL55411ch 2/3 wire Transmitter repeater

MTL5541A 1ch Transmitter repeater, passive input

MTL5541AS1ch Transmitter repeater, passive input, current sink

MTL5541S1ch 2/3 wire Transmitter repeater, current sink

MTL5544 2ch 2/3 wire Transmitter repeater

MTL5544A 2ch Transmitter repeater, passive input

MTL5544AS 2ch Transmitter repeater, passive input, current sink

MTL5544D1ch 2/3 wire Transmitter repeater, dual output

MTL5544S2ch 2/3 wire Transmitter repeater, current sink

Analogue Output　

MTL55461ch 4-20mA smart isolating driver + LFD

MTL5546Y 1ch 4-20mA smart isolating driver + oc LFD

MTL55492ch 4-20mA smart isolating driver + LFD

MTL5549Y2ch 4-20mA smart isolating driver + oc LFD

Temperature Input 　

MTL55751ch Temperature converter, RTD / THC with alarm

MTL5576-RTD2ch Temperature converter, RTD

MTL5576-THC2ch Temperature converter, THC

MTL55811ch mV/THC isolator for low-level signals

MTL55821ch resistance isolator

Pulse and Vibration 　

MTL5531 1ch vibration probe interface

MTL5532 1ch pulse isolator, digital or analogue output

MTL55332ch vibration probe interface

Fire and Smoke 　

MTL5561 2ch loop-powered, for fire and smoke detectors

General 　

MPA5500 85 - 265V ac power adaptor

MTL5599Dummy isolator

MTL599124V dc power supply

For any question about MTL5532 barrier, please feel free to send me an email.
