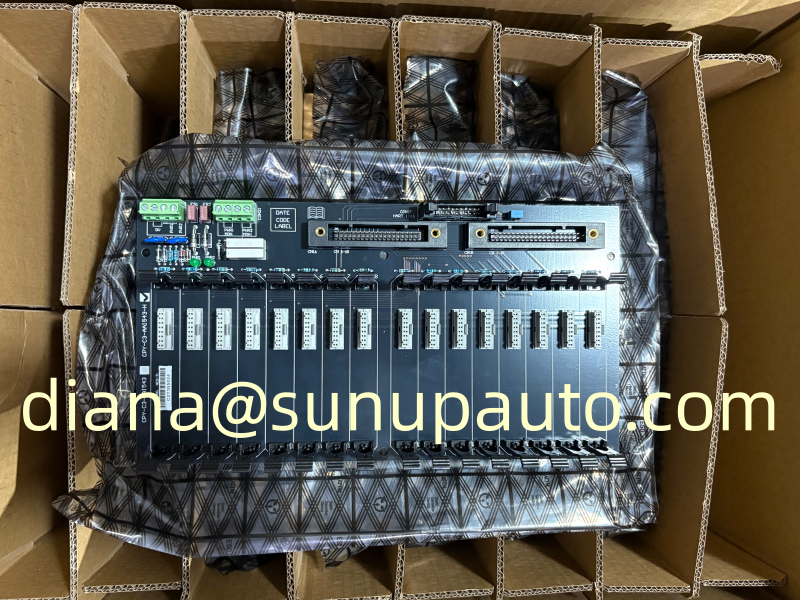

MTL CPY-C3-RAI141 Redundant Analog Input Backplane for Yokogawa CENTUM VP Interface Projects

MTL CPY-C3-RAI141 is a dedicated connection backplane for integrating MTL4500 intrinsically safe isolators with specified Yokogawa CENTUM VP and ProSafe-RS analog input hardware. It organizes the relationship between the system I/O card, interface cable, barrier modules, power distribution, and field channels. CPY-C3-RAI141 should therefore be selected from the complete cabinet design rather than from appearance alone.

Product identification

How the interface arrangement works

In the documented configuration, CPY-C3-RAI141 provides a structured connection point between the Yokogawa analog input assembly and a bank of MTL4541 or MTL4575 isolators. Each barrier handles its field loop while the backplane and system cable route safe-area signals toward the control system. This arrangement reduces individual point-to-point wiring and makes channel numbering easier to follow during assembly, loop checking, and maintenance.

Redundancy is a defining feature of CPY-C3-RAI141. The project drawings must show how the redundant path is implemented and which Yokogawa hardware revision is installed. A backplane with a similar name may support a different I/O card, channel density, cable set, or barrier combination.

Typical project and maintenance applications

• New Yokogawa control-system cabinets using MTL4500 intrinsic-safety interfaces

• Migration projects retaining existing 4-20 mA field instruments

• Redundant analog input assemblies for process and safety systems

• Replacement of a damaged backplane during a planned shutdown

• Standardized spare holdings for multiple cabinets with the same design

• Cabinet duplication for plant expansion or package-unit construction

Why the complete CPY-C3-RAI141 code matters

The CPY-C3 family contains versions for analog input, analog output, mixed I/O, digital input, full-density, and half-density arrangements. CPY-C3-RAI141 should not be substituted with CPY-C3-AAI141, CPY-C3-RAI141-H8, CPY-C3-AAI543-H, or CPY-C3-AAI841 simply because the mechanical format appears similar. The suffix identifies the intended card, channel structure, redundancy, and module population.

Commissioning records worth retaining

During panel testing, record the channel number, field tag, barrier position, measured loop current, control-system reading, and redundant-path result. Verify connector seating and cable identification before the cabinet is released. A signed loop-check sheet gives maintenance teams a reference when one channel later shows a deviation or communication fault.

Photographs should show the full backplane, label, system connectors, power connections, and neighboring modules. Store these images with the final cabinet drawing and bill of materials. This small documentation package makes future fault isolation faster and helps procurement distinguish a direct replacement from another member of the same product family.

Documents to check before quotation

Provide the CPY-C3-RAI141 label photo, quantity, Yokogawa I/O card model, installed barrier list, cable reference, cabinet drawing, destination, and delivery deadline. For a running plant, a photograph showing connectors and adjacent modules can clarify the installed revision. These records help confirm that CPY-C3-RAI141 is the correct project item before packing and shipment.

Sunup-MTL supports CPY-C3-RAI141 availability checks, coordinated barrier sourcing, export documentation, protective packing, and global delivery.
