How Pepperl+Fuchs FI-PFH-NS0137-R Organizes 16 HART Signal Channels for Reliable K-System Multiplexer Communication

Pepperl+Fuchs FI-PFH-NS0137-R is a 16-channel HART connection board designed for integration with a K-System HART multiplexer arrangement. It provides an organized point for bringing field and control-side signal wiring together while giving the multiplexer access to the HART communication carried on the analog loops. For maintenance teams, panel builders, and system integrators, the practical value of FI-PFH-NS0137-R is its ability to make multi-channel HART connectivity easier to identify, test, and service inside an industrial control cabinet.

The complete model number should be checked carefully. FI-PFH-NS0137-R is a communication and connection board rather than an isolated barrier or a stand-alone HART modem. Its suitability depends on the surrounding K-System architecture, channel wiring, multiplexer connection, cabinet environment, and project approval requirements.

Product Focus: A Structured Interface for 16 HART Channels

The board groups sixteen non-intrinsically safe HART signal channels in one DIN-rail-mounted assembly. Each channel can carry the analog process current while allowing the superimposed HART digital signal to be accessed by the multiplexer interface. Pepperl+Fuchs specifies a maximum rated current of 30 mA per signal channel, which is appropriate for the normal operating range of many 4-20 mA instrumentation loops when the complete design remains within the published conditions.

A 26-pin IDC connector is provided for the HART multiplexer connection. Field-side and control-side conductors use green screw terminals. This combination supports permanent loop wiring at the board and a compact multi-channel link to the communication equipment. FI-PFH-NS0137-R therefore helps separate ordinary terminal work from the higher-density HART connection.

Selectable 220 Ohm Load Resistance

HART communication needs suitable loop impedance so the digital signal can be detected reliably. FI-PFH-NS0137-R includes a switchable 220 ohm load resistor. DIP switches select the operating mode, allowing the board to be used with or without the integrated load resistance according to the loop design. Manufacturer data identifies the factory setting for switches S1 and S2 as ON, corresponding to operation without the load resistor.

The resistor setting should be based on the actual loop, not copied blindly from another cabinet. Existing controller input resistance, external precision resistors, intrinsic-safety interfaces, power supplies, cable characteristics, and connected field instruments all affect total impedance. Adding resistance where sufficient impedance already exists can reduce available voltage for the transmitter. Omitting it where the loop impedance is too low can make HART communication unstable.

Serial or Parallel Connection Planning

Pepperl+Fuchs describes FI-PFH-NS0137-R as an interface for serial or parallel connection. In a serial arrangement, the board is inserted into the loop path. In a parallel arrangement, the HART communication connection is taken across the existing signal circuit. The chosen method must preserve the analog measurement, maintain sufficient voltage at the field device, and comply with the system documentation.

During a retrofit, identify how every channel is presently wired before moving conductors. A cabinet may contain a mixture of active and passive analog inputs, external loop supplies, isolated barriers, or unused channels. A channel-by-channel drawing is more dependable than assuming all sixteen circuits follow the same pattern.

Key Technical Details for Cabinet Review

• 16 non-intrinsically safe HART signal channels

• Maximum rated current of 30 mA per channel

• Integrated 220 ohm load resistance with selectable operation

• One 26-pin IDC connector for the HART multiplexer interface

• Green screw terminals on the field and control sides

• Conductor cross section from 0.25 to 1.5 mm² according to the product data

• IP20 construction for installation inside a suitable enclosure

• DIN-rail mounting on a 35 mm rail

The published dimensions are approximately 110 mm wide, 125 mm high, and 61 mm deep, with a mass of about 210 g. These figures help when checking rail space and wire-bending clearance, but the complete panel layout must also leave room for the IDC cable, terminal access, labeling, and ventilation.

Environmental and Installation Conditions

The specified ambient operating range for FI-PFH-NS0137-R is 0 to 50 °C, with storage from -15 to 50 °C and relative humidity up to 93 percent non-condensing. The board is intended for a protected cabinet environment. Condensation, conductive dust, excessive heat, or poor airflow can affect reliable communication and terminal integrity even when the individual product remains within its basic rating.

Manufacturer information also references shock and vibration standards and identifies a Zone 2 marking for the applicable product configuration. The project engineer should review the current certificate and installation instructions before using FI-PFH-NS0137-R in a classified location. The complete enclosure, wiring method, associated apparatus, and local code remain part of the approval decision.

Commissioning a Multi-Channel HART Board

• Verify the complete FI-PFH-NS0137-R model and item number against the project bill of materials

• Record DIP-switch positions before replacing an installed board

• Confirm analog loop current and transmitter voltage on each connected channel

• Check total loop resistance before enabling the integrated 220 ohm load

• Test HART communication channel by channel from the multiplexer or asset-management system

• Compare instrument tags, board channels, terminal numbers, and software channel assignments

• Document unused channels and protect spare terminals from accidental connection

A successful analog value does not prove that HART communication is healthy. Conversely, identifying a HART device does not prove that the analog measurement is scaled correctly in the controller. Both functions should be verified before the cabinet is handed back to operations.

Replacement and Maintenance Notes

When FI-PFH-NS0137-R is replaced, take clear photographs of all terminal groups, IDC orientation, labels, and DIP switches. Mark each conductor before removal and avoid disturbing neighboring loops unnecessarily. Inspect the ribbon-cable connector for bent contacts or strain, and check screw terminals for heat discoloration or damaged conductor ferrules.

If several HART channels fail at the same time, investigate the common multiplexer connection, ribbon cable, power supply, and software communication path before replacing the board. A single failed channel may point toward local wiring, loop impedance, or a field instrument. Structured testing prevents a healthy FI-PFH-NS0137-R from being removed without evidence.

Sourcing Information for FI-PFH-NS0137-R

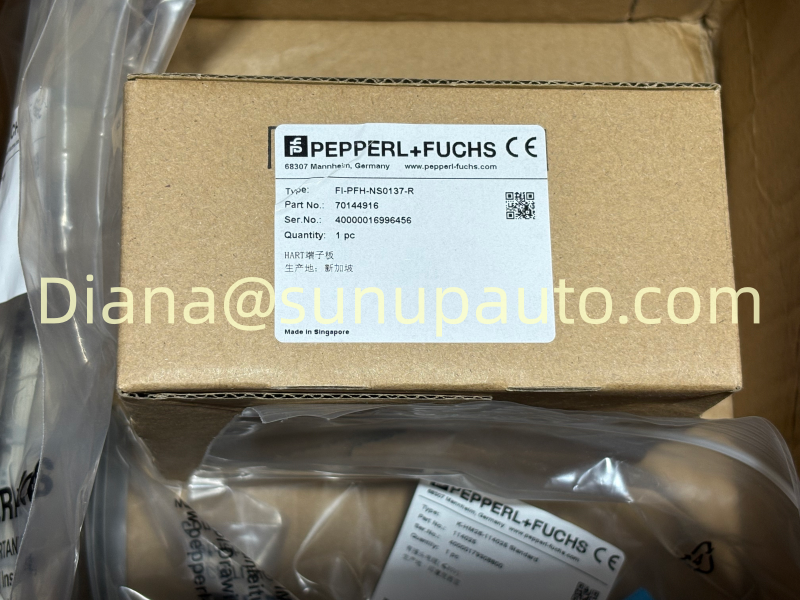

For a quotation, provide the exact FI-PFH-NS0137-R model, required quantity, destination country, delivery deadline, and a photograph of the existing product label. If the request is part of a cabinet upgrade, include the HART multiplexer model, cable reference, and number of active channels so the requested function can be reviewed before shipment.

Sunup-MTL supports international sourcing of Pepperl+Fuchs interface technology, HART multiplexer components, isolated barriers, signal conditioners, sensors, and related automation spares. We can assist with stock communication, model confirmation, export packing, and combined shipment for planned maintenance or urgent replacement.
