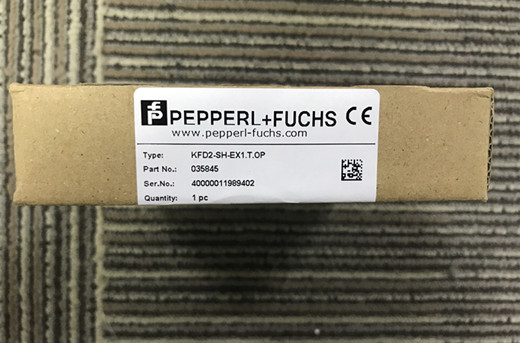

Applying Pepperl+Fuchs KFD2-SH-Ex1.T.OP in Safety-Related Digital Input Loops with SN/S1N Sensors and Line Fault Detection

Pepperl+Fuchs KFD2-SH-Ex1.T.OP is a one-channel isolated switch amplifier for transferring a digital signal from an approved dry contact or an SN/S1N safety sensor in a hazardous area to safe-area control equipment. The module combines an intrinsically safe input, an active voltage output, a relay contact output, and a separate fault indication output. This arrangement gives designers several ways to pass the operating state and wiring diagnostics into a safety system or conventional control cabinet.

KFD2-SH-Ex1.T.OP is often specified where line monitoring and defined failure behavior matter as much as ordinary switching. The full suffix should be retained in purchasing documents because closely related KFD2-SH variants can differ in output arrangement and power connection. Project engineers should compare the requested model with the approved loop drawing, safety manual, and current certificate before installation.

The Signal Path in Plain Terms

The field-side input of KFD2-SH-Ex1.T.OP connects at terminals 4+ and 6-. It monitors the current produced by a compatible sensor or resistor-equipped contact circuit. A normal operating current is interpreted as the active state, while currents outside the specified switching window are used to identify an inactive condition or wiring fault. The module then transfers the result to the control side without creating a direct electrical connection between hazardous-area and safe-area circuits.

The active voltage output is available at terminals 7+ and 8-. A relay contact output is provided at terminals 9 and 10, while terminals 11 and 12 carry the fault indication. This separation can help a system distinguish a process state from a lead breakage or short-circuit condition instead of treating every loss of signal as the same event.

What Makes the .T.OP Version Distinct

• One intrinsically safe digital input for approved dry contacts or SN/S1N sensors

• Active voltage output for fast solid-state signal transfer

• Relay contact output for a separate control or status path

• Dedicated fault indication output for line diagnostics

• Continuous monitoring for lead breakage and short circuit

• Power Rail supply arrangement for organized cabinet distribution

• Functional safety capability up to SIL 3 for the applicable output and architecture

Pepperl+Fuchs lists a rated supply range of 20 to 30 V DC, power consumption up to 1.7 W, and an ambient operating range of -20 to 60 degrees C. The active output can switch faster than the relay paths, so the selected output should match the response-time and safety requirements of the receiving system.

How Line Fault Detection Helps Maintenance

In a monitored contact circuit, resistor values allow KFD2-SH-Ex1.T.OP to distinguish normal switching from an open or shorted cable. This is valuable in emergency shutdown, burner management, machinery protection, and other applications where a broken conductor must not look like an ordinary process state. For a mechanical contact, the approved wiring arrangement may require a resistor across the contact and another resistor in series. The exact circuit must follow the Pepperl+Fuchs documentation and the project safety design.

If the module reports a fault, technicians should inspect the field cable, termination resistance, sensor supply behavior, and terminal tightness before replacing the barrier. A diagnostic output that changes correctly during a controlled open-circuit test is evidence that the monitoring path is functioning, but the complete proof test still needs to follow the plant procedure.

Installation and Proof-Test Review

1. Match the exact KFD2-SH-Ex1.T.OP model and record the installed terminal wiring.

2. Confirm that the field device is an approved SN/S1N sensor or correctly monitored dry contact.

3. Check the Power Rail supply, polarity, grounding concept, and cabinet segregation.

4. Verify which output is used by the safety function and which output is used only for indication.

5. Test the normal active and inactive states, then simulate lead breakage and short circuit.

6. Record response, LED indication, controller status, and final restoration of the field loop.

For safety-related service, do not substitute another switch amplifier only because the housing and terminal pattern look similar. The safety integrity level, proof-test assumptions, relay behavior, fault response, and certificate conditions must remain consistent with the validated application.

Ordering Details That Reduce Delays

Send the complete KFD2-SH-Ex1.T.OP model number, quantity, destination, required delivery date, and a clear photo of the existing label. It is also useful to identify the sensor type, supply method, and whether the request supports a planned project or an urgent shutdown. Sunup-MTL can help confirm the requested Pepperl+Fuchs model and coordinate international shipment with related K-System interface components.
