MTL5522 SOLENOID/ALARM DRIVER loop-powered, IIB product description:
MTL5522 SOLENOID/ALARM DRIVER loop-powered, IIB
The MTL5522 is a loop-powered module which enables a device located in the hazardous area to be controlled from the safe area. The MTL5522 can drive a certified intrinsically safe low-power load, as well as non-energy-storing simple apparatus such as an LED. The unit's input/output isolation allows the control switch to be connected into either side of the 24V dc supply circuit.
SPECIFICATION
Number of channels One Location of load Zone 0, IIB, T4–6 hazardous area if suitably certified Div. 1, Group C hazardous location
Input voltage
20 to 35V dc
Hazardous-area output
Minimum output voltage: 10.7V at 70mA
Maximum output voltage: 24V from 158Ω
Current limit: 70mA minimum
Output ripple
< 0.5% of maximum output, peak to peak
Response time
Output within 10% of final value within 100ms
LED indicator
Yellow: output status, on when output active
Maximum current consumption
125mA (typ.) at 24V
Power dissipation within unit
1.4W at 24V
Safety description
Uo=25V Io=166mA Po=1.04W Um = 253V rms or dc
More product models for MTL5500 Series Barriers.
Part Number
MTL5501-SR, MTL5510, MTL5510B, MTL5511, MTL5513, MTL5514, MTL5514D, MTL5516C, MTL5517, MTL5521, MTL5522, MTL5523, MTL5523V, MTL5523VL, MTL5524, MTL5525, MTL5526, MTL5531, MTL5532, MTL5533, MTL5541, MTL5541A, MTL5541AS, MTL5541S, MTL5544, MTL5544A, MTL5544AS, MTL5544D, MTL5544S, MTL5546, MTL5546Y, MTL5549, MTL5549Y, MTL5561, MTL5575, MTL5576-RTD, MTL5576-THC, MTL5581, MTL5582
MTL5500 series
Part NumberDescription
Digital Input
MTL5501-SR 1ch DI failsafe solid-state output + LFD alarm
MTL55104ch DI solid-state ouput
MTL5510B4ch DI multifunction solid-state output
MTL55111ch DI relay output
MTL5513 2ch DI solid-state output
MTL5514 1ch DI relay output + LFD alarm
MTL5514D 1ch switch/prox input, dual output relay
MTL5516C2ch DI with changeover relay output
MTL55172ch DI relay output + LFD alarm
Digital Output

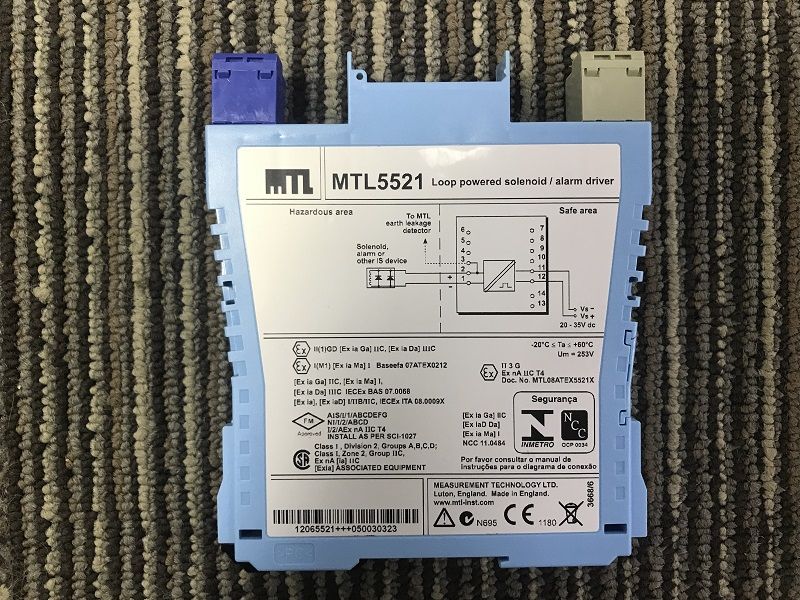

MTL5521Loop powered solenoid driver, IIC
MTL5522 Loop powered solenoid driver, IIB
MTL5523Solenoid driver with LFD
MTL5523V - VL Solenoid/Alarm driver with voltage control
MTL5524 Switch operated solenoid driver
MTL5525Loop powered solenoid driver low power
MTL55262ch switch operated relay
Analogue Input
MTL55411ch 2/3 wire Transmitter repeater
MTL5541A 1ch Transmitter repeater, passive input
MTL5541AS1ch Transmitter repeater, passive input, current sink
MTL5541S1ch 2/3 wire Transmitter repeater, current sink
MTL5544 2ch 2/3 wire Transmitter repeater
MTL5544A 2ch Transmitter repeater, passive input
MTL5544AS 2ch Transmitter repeater, passive input, current sink
MTL5544D1ch 2/3 wire Transmitter repeater, dual output
MTL5544S2ch 2/3 wire Transmitter repeater, current sink
Analogue Output
MTL55461ch 4-20mA smart isolating driver + LFD
MTL5546Y 1ch 4-20mA smart isolating driver + oc LFD
MTL55492ch 4-20mA smart isolating driver + LFD
MTL5549Y2ch 4-20mA smart isolating driver + oc LFD
Temperature Input
MTL55751ch Temperature converter, RTD / THC with alarm
MTL5576-RTD2ch Temperature converter, RTD
MTL5576-THC2ch Temperature converter, THC
MTL55811ch mV/THC isolator for low-level signals
MTL55821ch resistance isolator
Pulse and Vibration
MTL5531 1ch vibration probe interface
MTL5532 1ch pulse isolator, digital or analogue output
MTL55332ch vibration probe interface
Fire and Smoke
MTL5561 2ch loop-powered, for fire and smoke detectors
General
MPA5500 85 - 265V ac power adaptor
MTL5599Dummy isolator
MTL599124V dc power supply
